Description

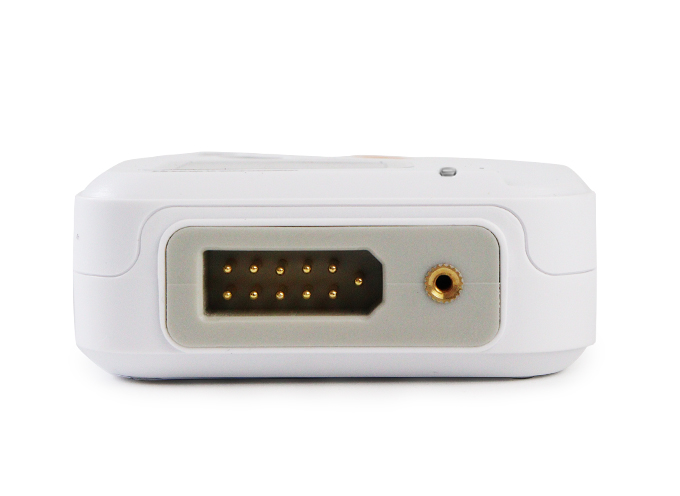

Automatic duplex operation: 12 channel (10 wire cable)
Programmable recording: time: 24h48h
Sampling rate: 128-1024/ch/s up to 10.000/ch/s Resolution: 12-16 bit
Independent stimulation channel
Change patient data and enter patient activities.
Change analysis parameters and perform a new analysis
Edit templates
Edit events
ST assessment
AF and AFL confirmation
Page Scan to quickly browse ECG data
Trend graph or trend list, display information about heart rate changes in time or frequency domain. QT Information
Analysis of obstructive sleep apnea, pacemaker ECG, heart rate turbulence
Waterfall chart 12 channel EC

Scale voltage: 1mV±5%
Standard sensitivity: 10mm/mV±5%
Noise level: ≤30μV p-p
CMRR: ≥60dB
Frequency response: 10Hz as a guide 0.5Hz～55Hz;-3dB
Time constant: time constant≥3.2s
Scan speed: 25mm/s±5%
Continuous polarization voltage: ±300mV DC added polarization voltage, sensitivity shift is not more than ±10%
Lowest measurement signal: 50 μV p-p
Inter-channel interference: sampling trace bending (due to inter-channel interference) ≤0.5mm 12-channel isochronous ECG pattern
Product safety type: type B (internally powered)
Size: 80.5mm (L) *59.5mm (W) *22mm (H)
Net weight: 61.5g (without battery)

Environmental conditions and applicable people
The environmental requirements for the operation, transportation and storage of this system.

Operating environment
Ambient temperature: 10℃~45℃
Relative humidity: ≤85% without condensation.
Atmospheric pressure: 860hPa-1060hPa
Power supply: DC 1.5V 1

Application environment:
No vibration dust corrosive or flammable matter.
No extreme temperature and humidity.

Transportation and storage environment
Ambient temperature: -40℃~+55℃
Relative humidity: ≤85%
Atmospheric pressure: 860hPa-1060hPa

Standard:

EKG Cable ……………. 1Pcs
Leather Case ………………. 1Pcs
Battery ……………………… 2Pcs
SD Card ………………….. 1Pcs
Cleaning Cloth ……………. 1Pcs

Options:

Rechargable Battery
Charger (Panasonic)
