Description

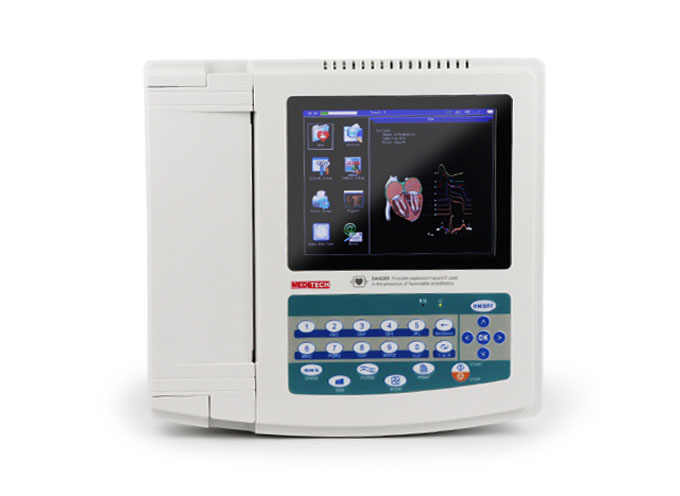

8 inch color touch screen displays work status and control settings
Touch keyboard (patient name, age, gender…)
Printout of multilingual report formats (thermal paper printing)
Manual freezing etc. with simultaneous acquisition of 12 ECG leads
Digital signal processor to improve the quality of ECG waveforms with AC filter,
baseline filter and EMG filter for ECG signals
Measurement and interpretation function
Automatic reset (baseline) for most available data sets

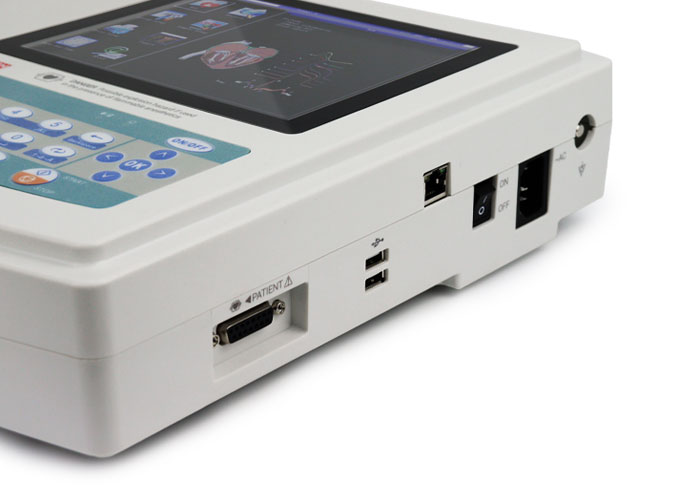

Internal rechargeable lithium ion battery, USB interface (standard), LAN jack (option)
Large capacity built-in memory to store more than 10,000 cases
Paper speed: Automatic & manual recording: 6.25, 12.5, 25, 50mm/s, Error: ±5%
Measurement parameters: HR p-R interval, P duration, QRS duration, T duration, Q T interval.
Q-Tc, P axis, QRS axis, T axis, R(V5), S(V1), R(V5)+S(V1)
Sensitivity selection: 2,5,5,10,20 ,40 mm/mv, 5 options, error: ±5%. Standard sensitivity is 10mm/mV±0.2mm/mV
Multilingual, comes with CardioSoft pro PC software for data transfer (save, review, print a report)
Analysis of FCG, HFCG, QTD and HRV elements
Multiple languages
PC software CardioSoft pro for data transfer (save, review, print a report)

EKG 1212Touch keyboard

Language :
English
Chinese
Spanish
Italian
German
French
Russian
Portuguese
Polish
Turkish
and more …

Comes with PC Software for data transfer

Leads: Standard 12 Lieads
Patient leakage current: < 10μA
Input impedance: ≥5MΩ
Frequency response: 1Hz~75Hz
Time constant: Time constant > 3.2s
CMRR: ＞60dB
EMG noise filter: 25/35Hz(-3dB)

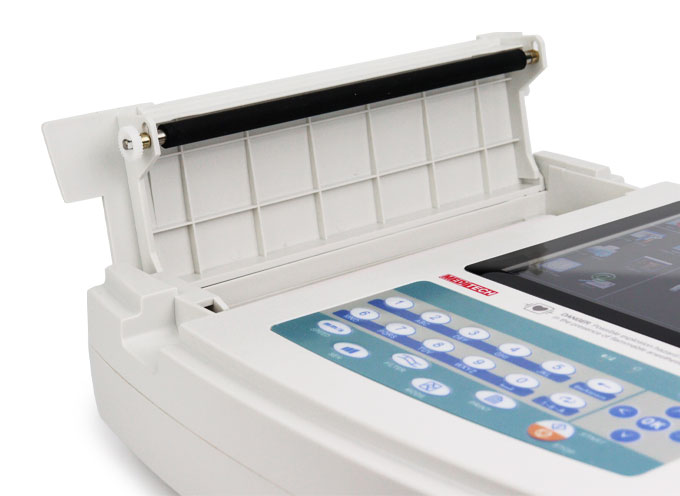

Recording method: thermal array printing system
Recording paper specification:
Paper speed:
Automatic recording: 25mm/s 50mm/s Error:±5%
Rhythmic recording: 25mm/s 50mm/s Error:±5%
Manual recording: 5 mm/s 6.25 mm/s 10 mms10mm/s 12.5 mm/s 25 mm/s 50 mm/s Error:±5%.
Sensitivity selection: 2.55102040mm/mV 5 options Error:±5%. The default sensitivity is 10mm/mV±0.2mm/mV.
Automatic recording: set up recording according to recording format and automatic mode with automatic change of line measurement and analysis.
Manual recording: set up recording according to recording format with manual change of measurement lines.
Measurement parameters: HR P-R interval P duration QRS duration T duration Q-T interval Q-Tc P axis QRS axis T axis R(V5) S(V1) R(V5)+S(V1)
Product safety type: class I type CF Defibrillation safe applied part.
Continuous polarization voltage: ±300mV
Noise level: ≤15μVp-p
Fuse specification: 2 pieces φ5×20mm AC slow-blow; T1.6A/250V(220V power supply)

Operation
a) Ambient temperature: +5℃~+35℃
b) Relative humidity: ≤80%
c) Power supply: AC:100~240V50/60Hz
DC:7.4V 3700 mAh rechargeable lithium battery
d) Atmospheric pressure: 86kPa~106kPa

Transportation and storage
a) Ambient temperature: -10℃~55℃
b) Relative humidity: ≤95%
c) Atmospheric pressure: 50kPa~106kPa
Input type: floating and defibrillation protection

Standard:

Chest Electrode ……… 6Pcs
Clamp Electrode ……….. 4Pcs
EKG Cable …………….. 1Pcs
USB Cable ………………… 1Pcs
CD “CardioSoft pro” …….. 1Pcs
Ground Wire ……………… 1Pcs
Paper Role …………………. 1Pcs
Power cable ……………….. 1Pcs
Cleaning Cloth ……………. 1Pcs

Options:

Case
Thermal Paper
ECG Trolley
PC(Computer)accessories
Printer accessories
