Description

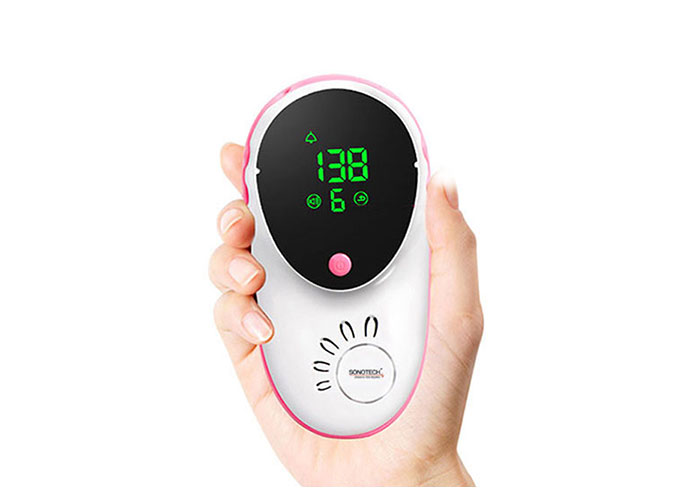

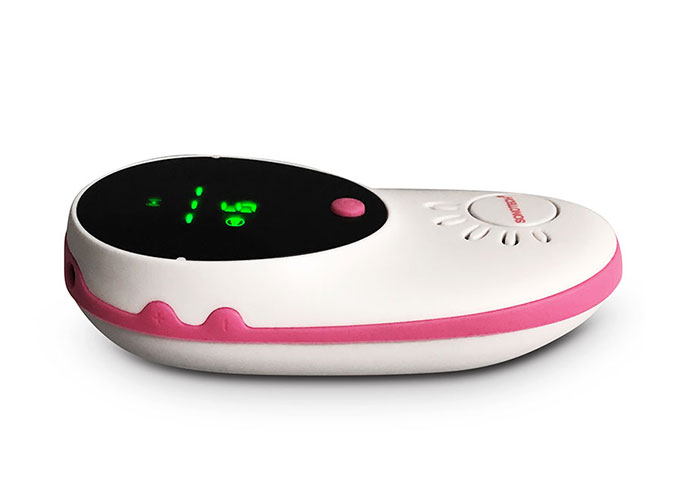

fetal Doppler with high sensitivity and easy operation
Built-in memory for data storage
Alarm function for ubnormal range
Color and large display
+30 hours of operation with 3 AAA alkaline batteries

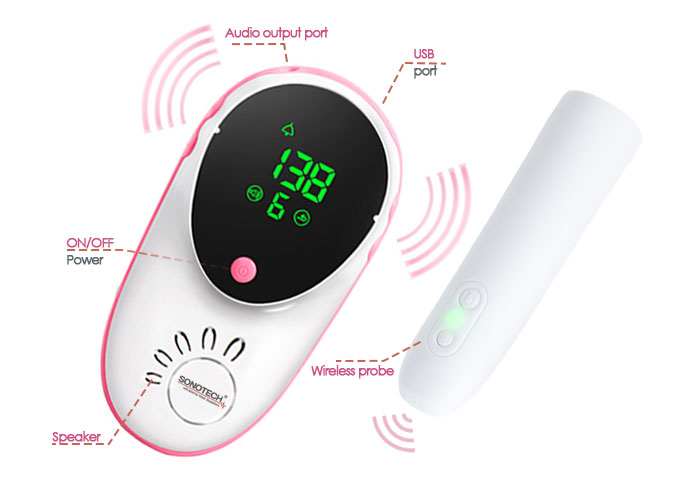

Built-in speaker (=1,8 W) with volume control on the bottom side
Automatic shutdown when no signal (2 min) function

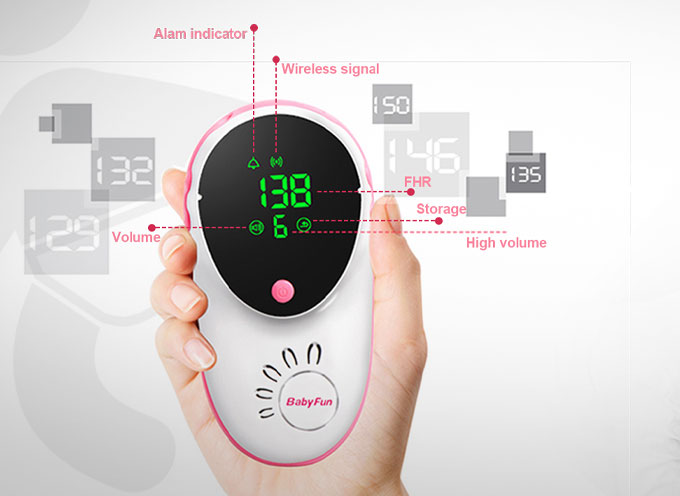

Indicator for:
Signal level (between the wireless probe and the Doppler)
Alarm for ubnormal FHR(Fetal Heart Rate) range
Volume (0-6)
Battery capacity
Memory space (0-9)

Classification:
Anti-electrical shock type: devices with internal power supply
Degree of anti-electrical shock: Type B devices
Degree of protection against harmful liquids: IP×4
Suitable use: Suitable for use after the 16th week of pregnancy

FHR Performance:
FHR measurement range:50-210BPM(beat per minute) Resolution:1BPM
Accuracy:±2BPM Probe:
Working frequency:2.5MHz±10%
Output power: < 10mW/cm²
Spatiotemporal peak sound pressure: < 0.1Mpa
Ovarelle sensitivity: ≥90dB

Physical characteristics:
Main unit: 132mm(L)×68mm(W)×34mm(H)
Probe:
Sonotech 5 models: 31mm(Ø) × 103mm(H)
Sonotech 5W models: 32mm(Ø)×120mm(H)
LCD display:38mm(Ø)
Weight: About 200g(including batteries) Environment:

Working environment:
Temperature: + 5°C~ + 40°C Humidity:≤80%
Atmospheric pressure:70kpa ~106kpa
Transportation and storage:
Temperature: -40℃~ + 55℃ Humidity: ≤90%
Atmospheric pressure: 50kPa ~106kpa

Power Supply:
Host Internal:1.5V Battery×3(Size: AAA) Probe
Internal: 3.7V lithium polymer battery
External: 5V USB device

Power supply.
AC/ DC Adapter:
Eingang:AC100~240V,50Hz/60Hz,0.2A MAX.
Output: DC 5V,1000mA,5VA.

Standard:

USB Wire …………………………….. 1Pcs
Use for
Sonotech® 5 : to connect the probe and the fetal doppler.
Sonotech® 5W : to charge the wireless probe.
2.5Mhz Fetal doppler probe ……….. 1Pcs
Cleaning Cloth …………………………. 1Pcs
Audio stereo Cable ………………….. 1Pcs

Options:

Headphone
External mini Speakers
Carry Case
Audio smart device Cable (Android .iOs)
AAA Battery
Rechargeable Battery
Charger (Panasonic)
