Description

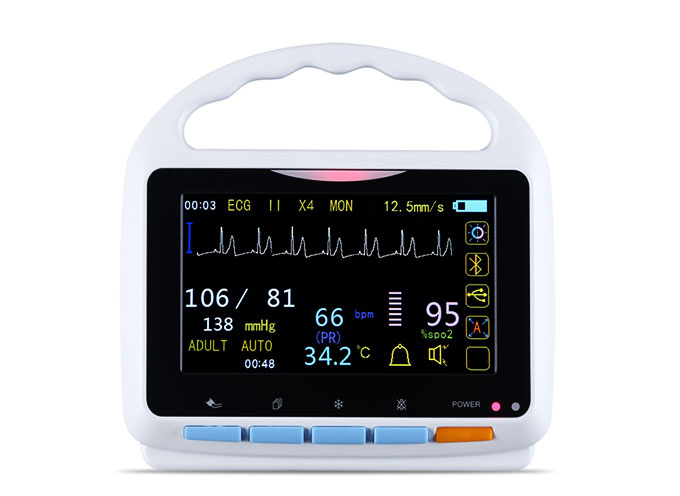

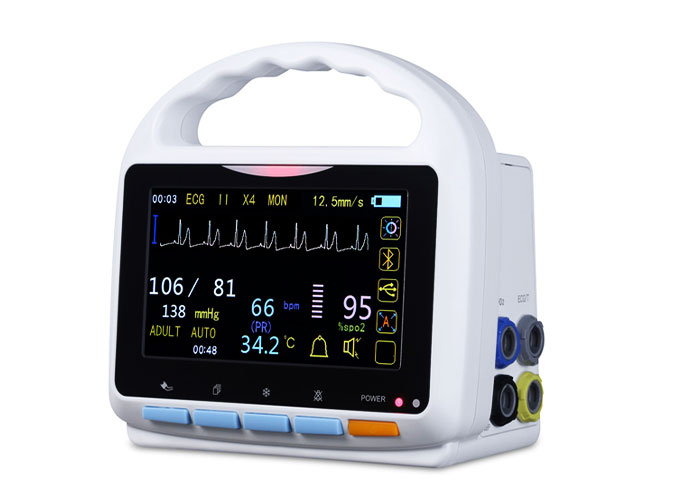

Portable, compact, easy to transport and operate patient monitor
Clear and bright 5.0-inch colour TFT LCD display with touch screen and real-time display
Intelligent measurement of ECG.NIBP.SpO2. PR.PLETH.TEMP
Storagerecall of trend data up to 129.6 hours and 3888 groups
Storage of ECG waveforms, each segment is 8 seconds long, 30 segments in total; NIBP, SPO2, pulse rate and TEMP Summary data sheets for up to 100 groups that can be printed via the BlueTooth printer port
PC utility software package for long term monitoring, uploadingreviewingprintingsaving history data.
Upload history data to PC for review, storage or printing via USB data line or BlueTooth wireless connection
Audible and visual alarm
Built-in rechargeable Li-ion battery, up to 15 hours power supply
The backlight can be freely adjusted
To use the communication function, please install the data display software on the PC equipped with a printer and connect the monitor to the PC via USB cable or BlueTooth wireless connection.

Options Bluetooth Thermal printer Bluetooth Printer

ECG
Input：3 /5-Lead ECG cable standard AAMI cable connector
Lead selection：I, II, III
Gain selection：×1, ×2, ×4, ×8
Sampling speed: 12.5 25 and 50 mm/s
Frequency response: without filter: 0.05～100Hz (-3dB)
filter: 0.5～40Hz (-3dB)
Calibration signal: 1mV square wave
Protection: against electrosurgical interference and defibrillation

Heart rate
Measuring range: 20 bpm～300 bpm
Renewal time: 1 time per beat
Accuracy: ±1 bpm
Alarm mode: Audible and visual alarm

SpO2
SpO2%
Measuring range:0%～100%
Resolution:1%
Accuracy:±2 %(90%～99%)
±3 %(70%～89%)not specified (0%～69%)
Pulse Rate
Measurement and alarm range:20～300bpm
Resolution: 1bpm
Accuracy: ±1bpm

NIBP
Method: Oscillometric
Mode: Manual Auto STAT
Measuring interval in mode AUTO: 1 2 3 5 10 15 20 30 45 60 (min)
Measurement duration in mode STAT: 5 min
Cuff pressure range: 0 mmHg～300mmHg
Pulse rate range: 30 bpm～250bpm
Measurement rate: adult 30 mmHg～255mmHg
Pediatric 30 mmHg～160mmHg
Overpressure protection:
Adult 300mmHg
Pediatric 220 mmHg
Pressure resolution: 1mmHg
The SYSTOLIC and DIASTOLIC measured with this device must be measured by trained medical personnel using a cuff and stethoscope.
The value measured with this device MEAN is equal to the value measured with a blood pressure monitor.

Temperature
Input: Heat sensitive resistance temperature sensor on the body surface
Measuring range: 0℃～50℃
Accuracy: ±0.1℃

Storage and verification
Maximum data quantity: 3888 groups
Maximum trend time: Continuous 129.6 hours

Power:
Rechargeable battery 1700mAh~2000mAh.7.2V.
Charging (discharging) ≧1000 times.
Charging time: 2 hours
Operation/relative humidity：0～55℃/10～80%RH
Storage operation/relative humidity：-20～60℃/10～90%RH

Power supply
AC power adapter
Input: 100～240VAC 50/60Hz 0.7A
Output: DC 5V 1.5A

Battery
Li-ion battery 3.7V/7200mAH
Operating time: 15 hours at full battery capacity.
(Condition: 25℃ NIBP working time is 15 minutes)
Recharge time: 10 hours.

Environment
Temperature
Working:0℃～45℃
Transportation and storage:-25℃～85℃
Humidity
Work:30 % ～85
Transport and storage:30 % ～95 % (no condensation)

Display specification
Measured value display: Color TFT- LCD /touchscreen
Power supply display: Two-color LED (red/green)
Charge indicator: One green LED
Size: 209mm×104mm×47.5mm
Net weight: 655g

Monitoring Parameters
Printer (optional)
Type: Thermal microprinter
Printer paper: 58mm thermal paper, roll diameter 33mm
Interface: Bluetooth wireless interface
Recording modes: real-time printing and test data printing

Standard:

ECG Cable ………………. 1Pcs
SpO2 Cable (Adult) …….. 1Pcs
NIBP Cuff (Adult) ………… 1Pcs
Tempreture probe ……….. 1Pcs
Power Adapter ………….. 1Pcs
Tempreture probe ……….. 1Pcs
USB Cable ……………….. 1Pcs
Cleaning Cloth ……………. 1Pcs

Options:

ECG Cable (3 Leads)
ECG Alligator Clips (Metal)
SpO2 Cable (Adult hard shell sensor)
SpO2 Cable (Adult Soft shell sensor)
SpO2 Cable (Neonatal soft sensor)
SpO2 Cable (Pediatric hard shell sensor)
SpO2 Cable (Pediatric Soft shell sensor)
SpO2 Cable (Child finger clip)
SpO2 Cable (multi-site Y type)
SpO2 External Cable
NIBP Cuff (infant 8 – 14 cm 5/Bag)
NIBP Cuff (Child 13 – 20 cm 5/Bag)
NIBP Cuff (Small Adult 18 – 26 cm 5/Bag)
NIBP Cuff (Adult 26 – 35 cm 5/Bag)
NIBP Cuff (Adult Long 29 – 38 cm 5/Bag)
NIBP Cuff (Large Adult 32 – 42 cm 5/Bag)
NIBP Cuff (Large Adult Long 35 – 44 cm 5/Bag)
NIBP Cuff (Thigh 42 – 50 cm)
NIBP Tube 150cm
Paper Role
Thermal Printer
