Description

Product Feature

• Reagent-Sample Tray

  40 Reagent positions, 48 Sample positions

  Allow mixed display of all kinds of samples

  37±0.1℃, real-time monitor

• Reaction Tray

  50 Reaction positions

  Automatically monitor on the remaining circulating cooling refrigeration

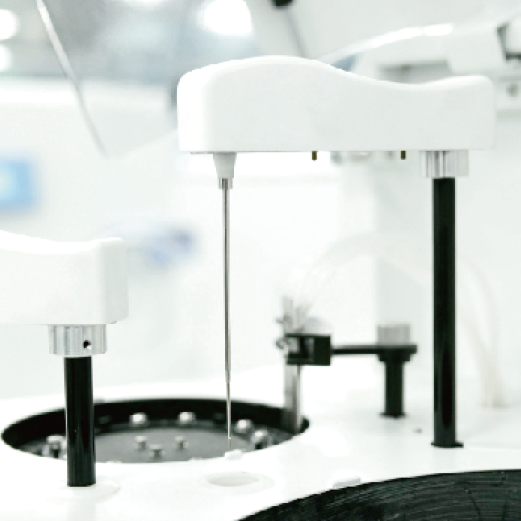

• Reagent/Sample Filling Mechanism

  Special coating to avoid contamination

• Stirring Mechanism

  Liquid level sensor & Anti-collision function

  Reagent volume real-time detection

  Automatic cleaning function

• Automatic Cleaning Mechanism

  Automatic 8 sections washing of reaction cups

  Plugging and automatic cleaning functions for washing probe

  Technical Specifications

• Description	Parameters
  Sample Type	Whole Blood, Serum, Plasma, Urine, CSF, Hydrothorax, Ascities, etc.
  Test Speed	200 Test/Hour
  Simultaneously Test Items	38
  Sample Position	48
  Reagent Position	40
  Reaction Position	50
  Sample Volume	1.5-50 μL, with 0.1μL step
  Reagent Volume	10-350 μL, with 1.0μL step
  Reaction Volume	240~500 μL
  Light Source	12V 20VA Halogen Lamp
  Photometry Range	0-4.0 Abs
  Wavelength	9 Wavelengths (340, 405, 450, 510, 546, 578, 620, 660, 690nm)
  Temperature Control	37±0.1℃
  Cleaning System	6 Stage cleaning
  Power Supply	100-240V AC, 50/60Hz, 1KVA Three-core power cord, with good grounding
  Dimension (L×W×H)	622mm×428mm×527mm
  Weight	47.5 Kg
